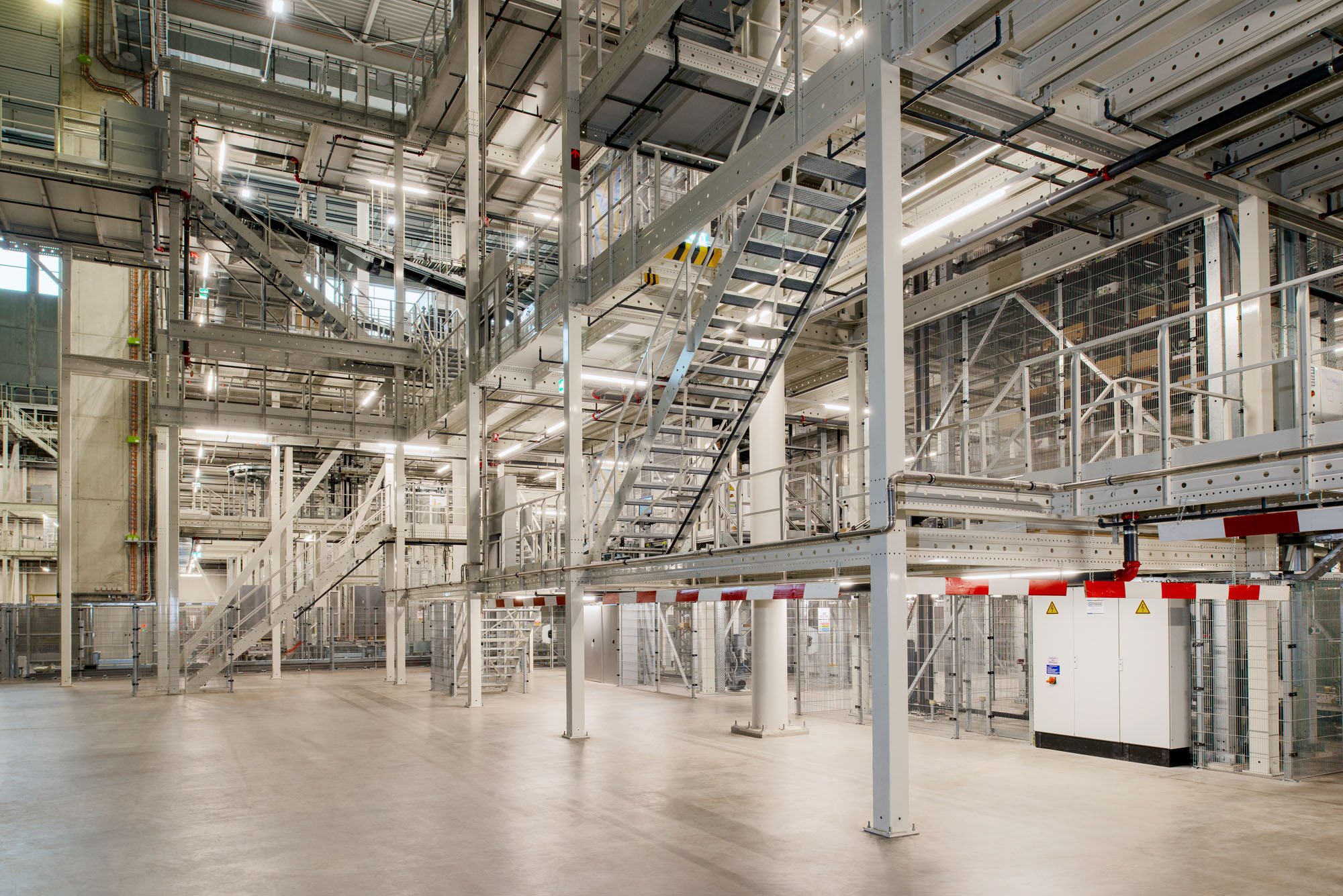

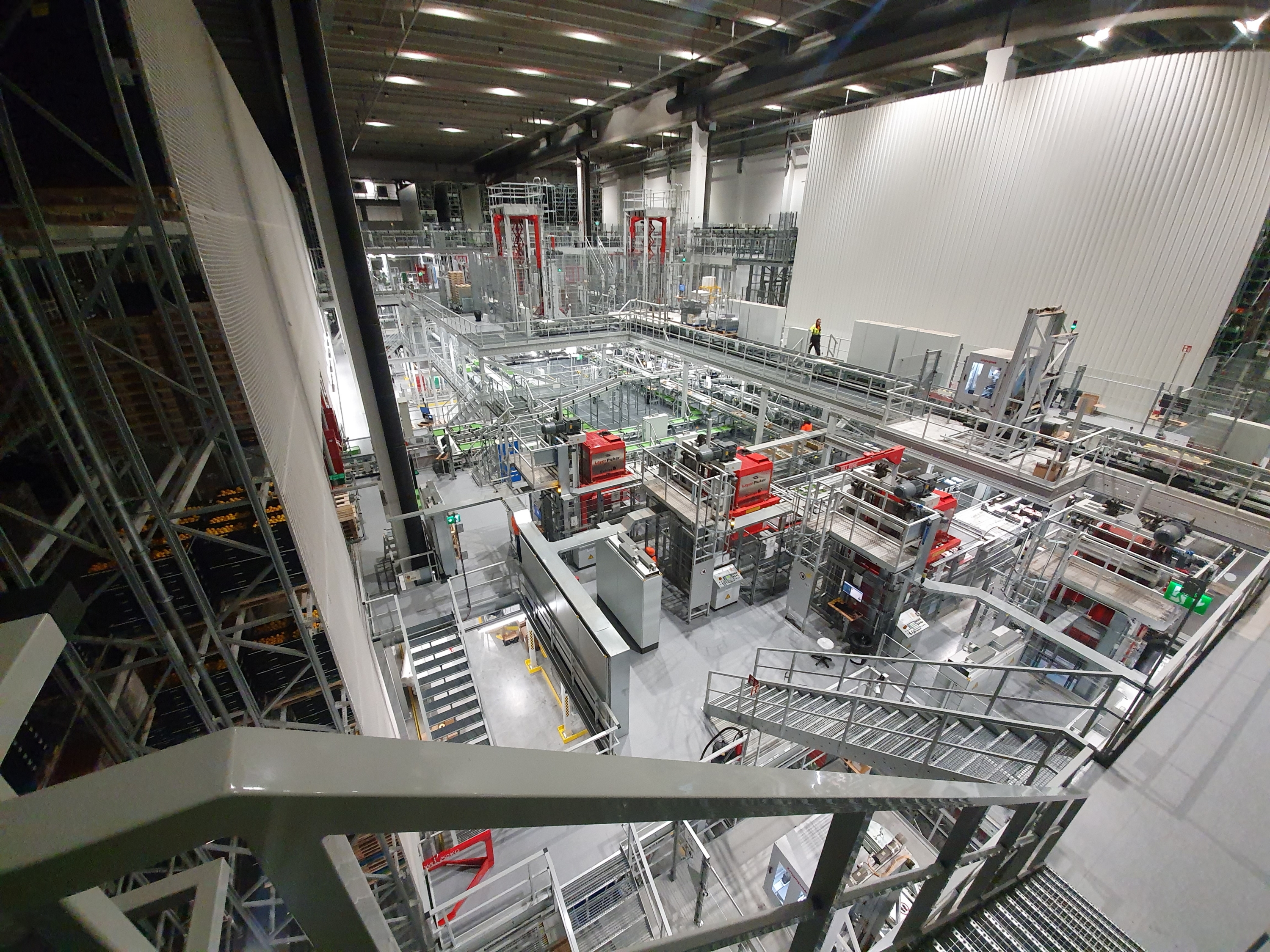

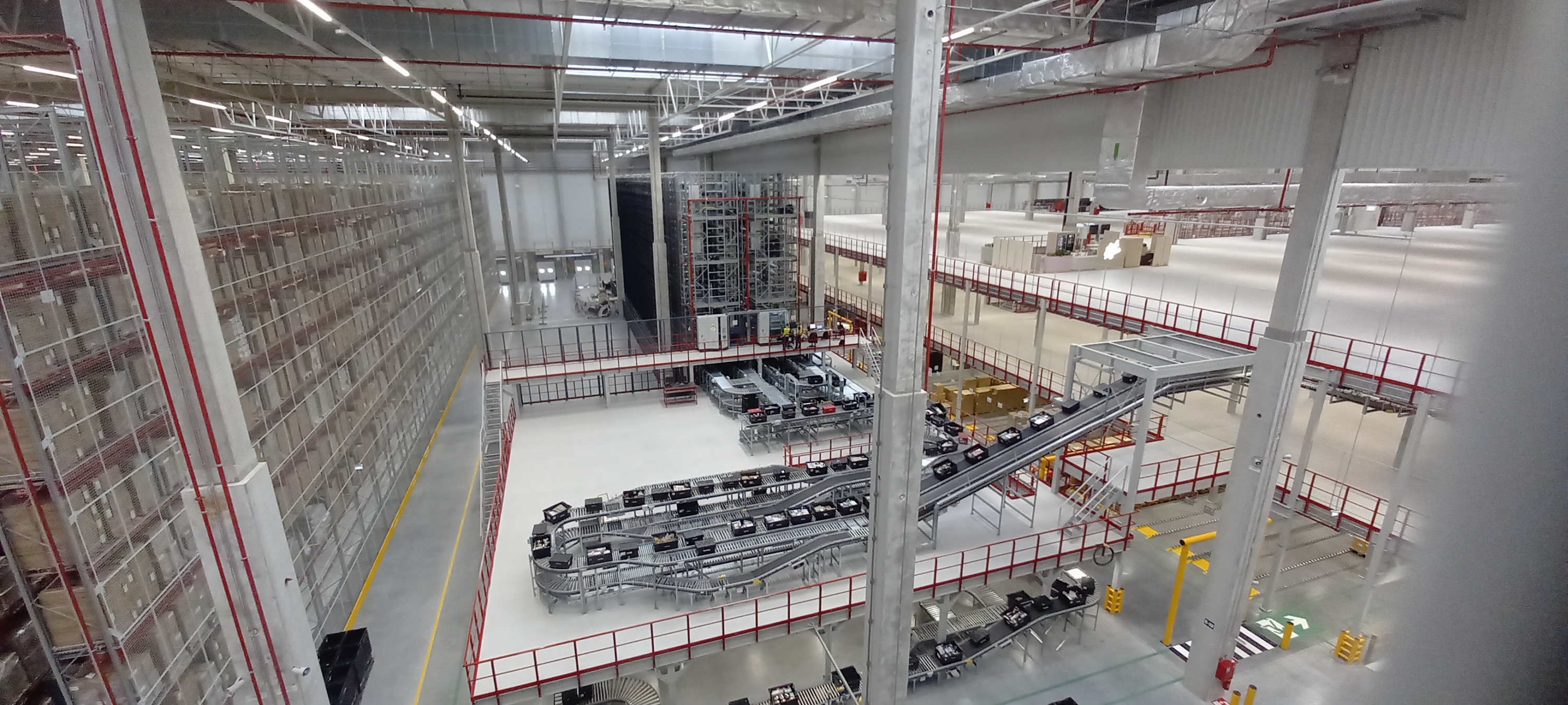

Multispazio® industrial mezzanines are the flagship of TORRI competence. These structures are engineered for our customers, working together with them as one team, leveraging on TORRI’s expertise and tailor made to meet the most demanding requirements. Without compromises.
The vast combination of profile sizes, available thickness and steel grades are enabling factors for optimizing the ratio between the weight of the structure and the loading capacity.
Simplified joint components offer quicker assembly time in a world where skilled manpower is becoming short.
Beams
The core of Multispazio’s innovation lies in the beam range, offering the flexibility to cope with the most diverse mezzanine demands. Load capacities range from 250 kg/m² to 1200 kg/m², with wide spans up to 10 meters.
Direct coupling
Decades of expertise in designing mezzanines made the Multispazio® concept evolve. The connection between primary beams and the upright simplyfies the coupling while guaranteeing the same loading capacity and overall stability.
Safety handrails
Made of steel and compliant with current regulations, safety elements prevent falls and provide containment and support for hands and feet. All parts are powder-coated for optimal functionality and an attractive finish.
Flooring options
Multispazio® mezzanine floors can be customized with various options. Upon customers’ request the floor can be made to simply deliver its function or to meet specific aestetich requirements leaving the craft open to a wide range of material possibilities:
- corrugated steel and wood

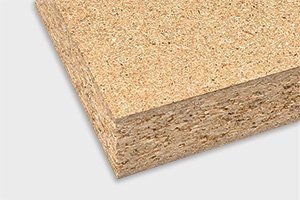

- standard or fire-retardant chipboard
- perforated or solid steel panels
All with tailor made shapes.

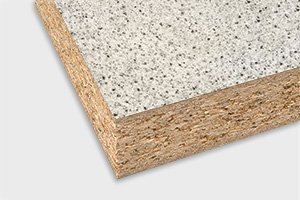

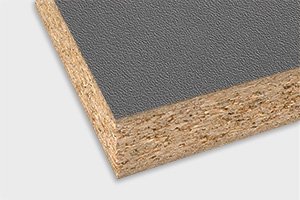

Fire-retardant chipboard
These high-performance chipboard panels feature a density of 640–750 kg/m³, with a 100 g/m² white melamine-coated underside and a slip-resistant surface on top, depending on customer specifications.
